رقم الصنف :
Coolworks Oil Separator 6.3669.0 6.3566.0 KV150-059الطلب (موك) :
1دفع :
Please consultأصل المنتج :
Chinaلون :
Customizableميناء الشحن :
CNYTN;CNSHK;CHNNS;CNHPU;SHANGHAI;QINGDAO,etcفترة إنتاج :
5-7 working daysثقل :
Please consult
![]() |
![]() |
Oil separator standard specification | ||||
Air flow(m³/min) | OD d1(mm) | Flange d2(mm) | ID d3(mm) | Height h(mm) |
35 | 135 | 170 | 75 | 160 |
4.5 | 135 | 170 | 75 | 200 |
6.8 | 135 | 170 | 75 | 305 |
5.0 | 170 | 200 | 109 | 180 |
6.5 | 170 | 200 | 109 | 230 |
9.0 | 170 | 200 | 109 | 305 |
12 | 170 | 200 | 109 | 400 |
9.0 | 220 | 273 | 157 | 230 |
12 | 220 | 272 | 157 | 305 |
16 | 220 | 288 | 157 | 400 |
25 | 220 | 272 | 157 | 612 |
15 | 275 | 328 | 209 | 305 |
20 | 275 | 328 | 209 | 400 |
25.5 | 275 | 328 | 209 | 500 |
16 | 300 | 355 | 220 | 305 |
22 | 300 | 355 | 220 | 400 |
28 | 300 | 355 | 220 | 500 |
32 | 300 | 355 | 220 | 540 |
34 | 300 | 355 | 220 | 600 |
40 | 300 | 355 | 220 | 700 |
40 | 350 | 430 | 265 | 550 |
39 | 400 | 434 | 314 | 520 |
43 | 400 | 439 | 314 | 600 |
46.5 | 400 | 434 | 314 | 620 |

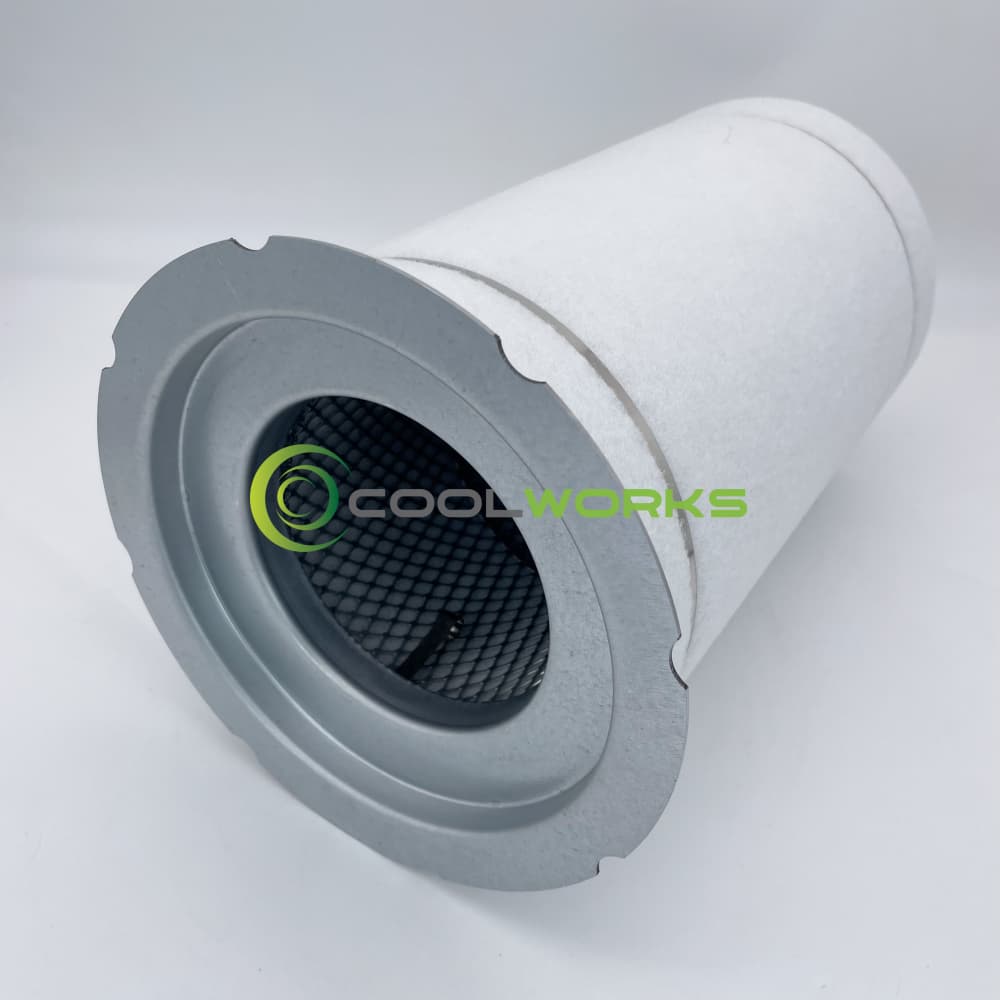

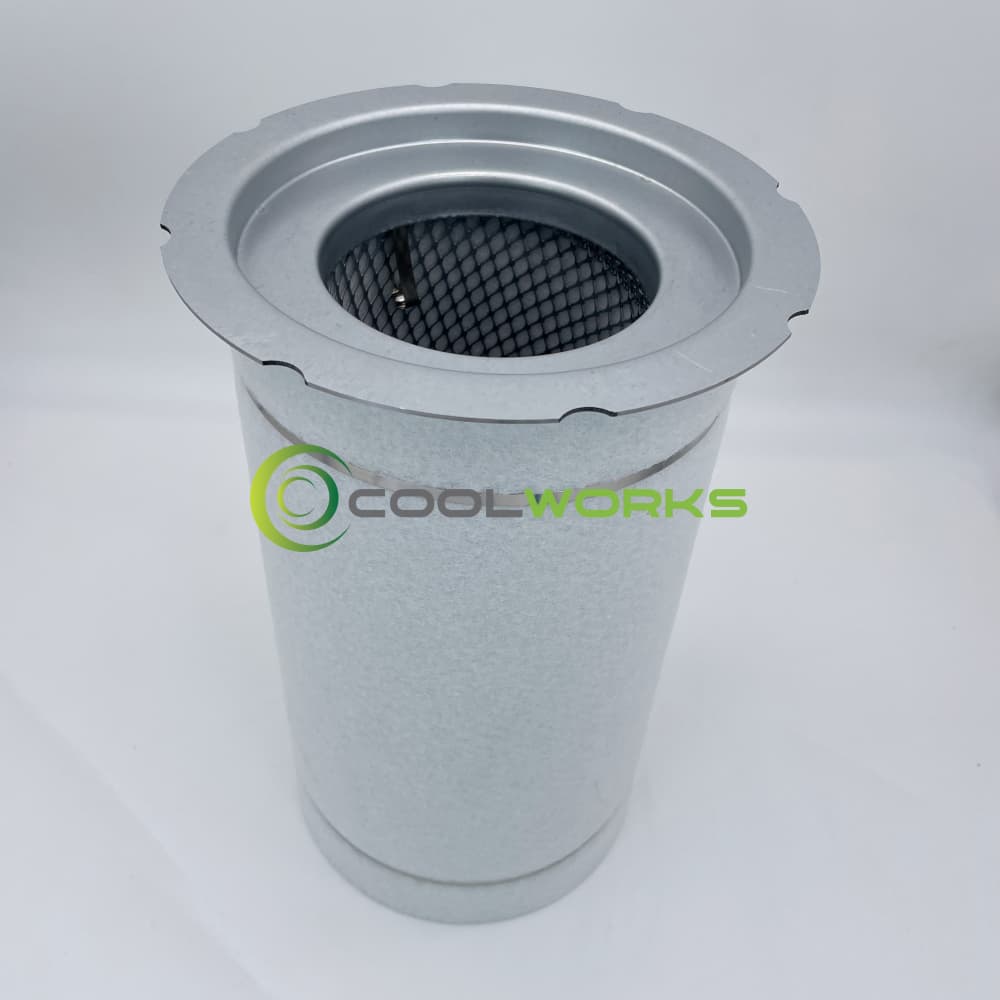

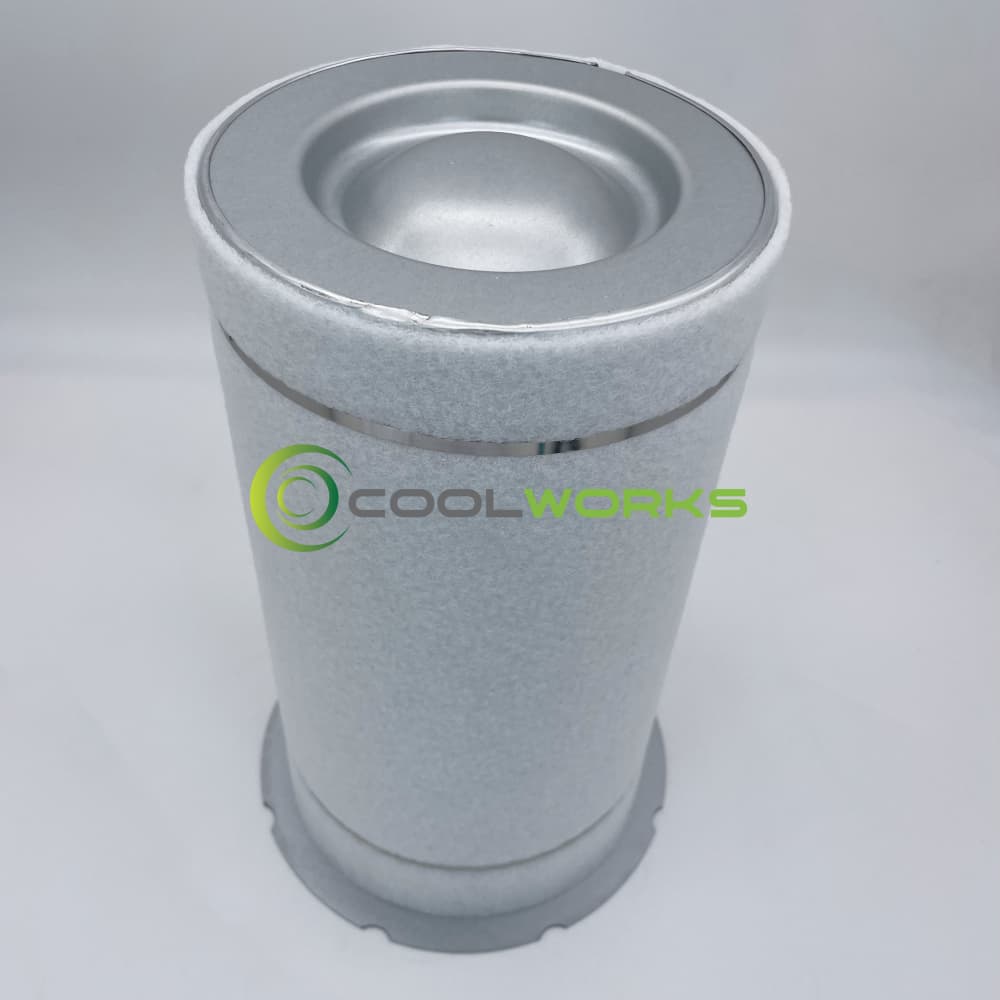

Finding the right 6.3669.0, 6.3566.0, or KV150-059 oil separator for your Kaeser screw compressor is key to maintaining performance and air quality.
Our replacement parts are engineered to match original specifications, offering a reliable solution for your maintenance needs.
These oil separators effectively capture oil mist through a multi-layer glass fiber design, which helps maintain clean air output and can contribute to reduced oil consumption over time.
The construction is designed for consistent performance under normal operating conditions through its service life.
